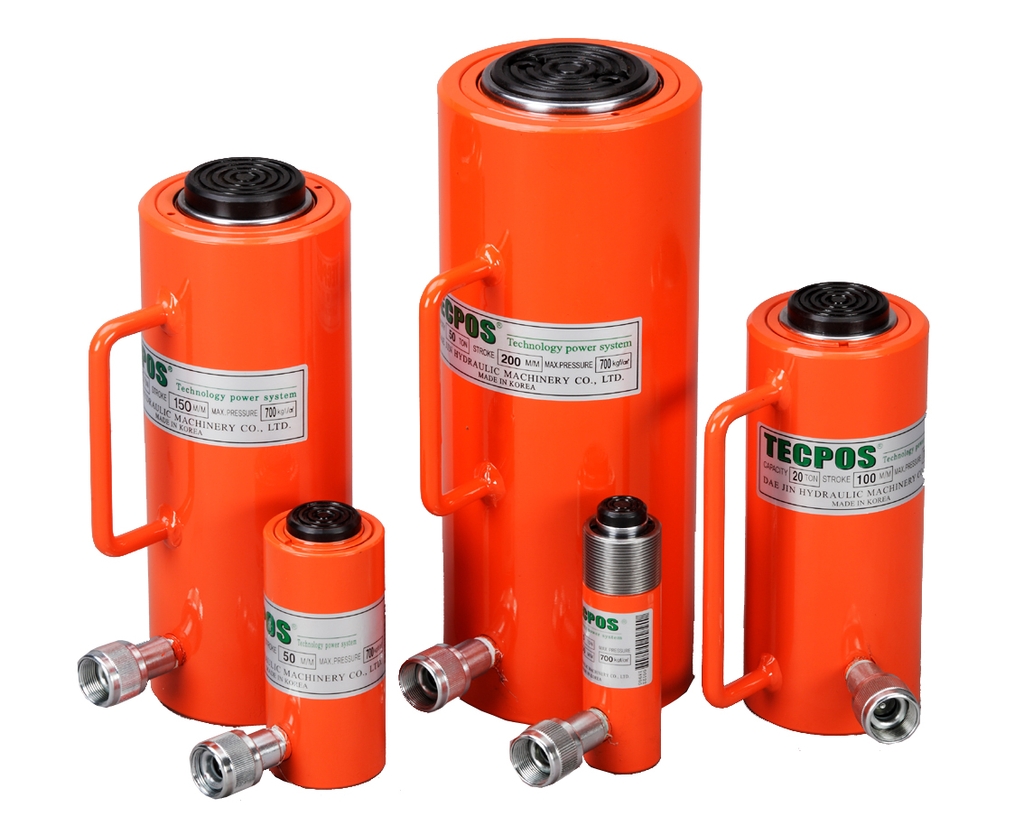

SINGLE-ACTING CYLINDER (싱글램) TS

Nhà cung cấp: ĐẠI LÝ CHÍNH THỨC THIẾT BỊ CÔNG NGHIỆP

Mã sản phẩm: TS

Tình trạng: Còn hàng

Liên hệ

T S – 5 5

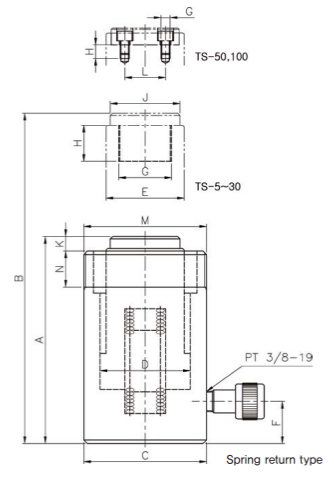

Product Code	Cyl. Cap.	Stroke	Cyl. Effective Area	Oil Cap.	Retracted Height	Extended Height	Cyl. Out Dia.	Cyl. Bore Dia.
	t	mm	cm(2)	cc	A mm	B mm	C mm	D mm
TS-55	5	50	6.38	35	134	184	38	28.5
TS-510	5	100	6.38	70	184	284	38	28.5
TS-515	5	150	6.38	106	234	384	38	28.5
TS-520	5	200	6.38	140	284	484	38	28.5
TS-105	10	50	15.2	76	133	183	58	44
TS-1010	10	100	15.2	152	183	283	58	44
TS-1015	10	150	15.2	228	233	383	58	44
TS-1020	10	200	15.2	304	283	483	58	44
TS-205	20	50	33.18	166	165	215	88	65
TS-2010	20	100	33.18	332	215	315	88	65
TS-2015	20	150	33.18	498	265	415	88	65
TS-2020	20	200	33.18	664	315	515	88	65
TS-305	30	50	44.18	220	172	222	102	75
TS-3010	30	100	44.18	440	222	322	102	75
TS-3015	30	150	44.18	660	272	422	102	75
TS-3020	30	200	44.18	880	322	522	102	75
TS-505	50	50	70.88	355	173	223	127	95
TS-5010	50	100	70.88	710	223	323	127	95
TS-5015	50	150	70.88	1,070	273	423	127	95
TS-5020	50	200	70.88	1,425	323	523	127	95
TS-10010	100	100	132.7	1,330	226	326	165	130
TS-10015	100	150	132.7	1,991	436	436	165	130

Model	Cyl. Cap.	Stroke	Piston Rod Dia	Base to Inlet port	Piston rod internal thread	Piston rod Thread Length	Weight	Pump
	t	mm	E mm	F mm	G	H mm	kgs
TS-55	5	50	25	25	3/4-16 UNF	16	1.1	1B or 08
TS-510	5	100	25	25	3/4-16 UNF	16	1.4	1B or 08
TS-515	5	150	25	25	3/4-16 UNF	16	1.4	1B or 08
TS-520	5	200	25	25	3/4-16 UNF	16	2.2	1B or 08
TS-105	10	50	38	20	1-8 UNC	19	2.1	1B or 08
TS-1010	10	100	38	20	1-8 UNC	19	3.4	1B or 08
TS-1015	10	150	38	20	1-8 UNC	19	4.8	1B or 08
TS-1020	10	200	38	20	1-8 UNC	19	5.6	1B or 08
TS-205	20	50	57	35	M38x2.0	26	7	1B or 08
TS-2010	20	100	57	35	M38x2.0	26	8.8	1B or 08
TS-2015	20	150	57	35	M38x2.0	26	11	1B or 08
TS-2020	20	200	57	35	M38x2.0	26	12.7	1C or 17
TS-305	30	50	65	35	M44x2.0	30	9.8	1B or 08
TS-3010	30	100	65	35	M44x2.0	30	12.5	1B or 08
TS-3015	30	150	65	35	M44x2.0	30	16	1C or 17
TS-3020	30	200	65	35	M44x2.0	30	17.5	1C or 17
TS-505	50	50	85	35	M10x1.5	13	15.8	1C or 17
TS-5010	50	100	85	35	M10x1.5	13	20	1C or 17
TS-5015	50	150	85	35	M10x1.5	13	23.5	1C or 17
TS-5020	50	200	85	35	M10x1.5	13	27.7	1C or 17
TS-10010	100	100	110	40	M10x1.5	15	32.7	25
TS-10015	100	150	110	40	M10x1.5	15	44.5	25
